Hassle-Free DIY Fabrication
How it works
Thanks to Kwiktech’s ingenious design and clinical precision, it all comes down to simple mathematics to ensure your framework builds perfectly square when your Connectors are accurately positioned without all the calculations and complicated measurements.
Kwiktech improves on the centuries old technique of Compression and Tension Forces, as used in trusses for house construction, and capitulates it into the 21st century thanks to state-of-the-art technology and cutting-edge manufacturing processes.
Armed with only a tape measure and standard power tools you can now fabricate with the strength and precision of steel, aluminium or a combination of both without all of the hassle, hours of preparation and clean up and absolutely no expensive equipment. All you need to know is contained within our 4-minute DIY Square Framework Video Tutorial.
Watch this 1-minute Kwiktech v Welding demonstration and see for yourself. On the left is the inventor of Kwiktech with 20+ years experience as a Boilermaker. On the right a Kwiktech user soon after purchasing his first Impact Driver.
Same design, same hollow metal and same end result. Only completed 3x faster without all the hassle.
How it compares
Even when you ignore the fact that no extensive training is required, Kwiktech is light years ahead of traditional building and fabrication techniques to ensure you save both time and money. In fact if you don’t agree that using Kwiktech is truly hassle-free fabrication, we will give your money back. No questions asked.
Extensive testing has proven time and time again that when fabricating the exact same framework, Kwiktech’s revolutionary DIY Hollow Metal Fabrication System is up to 3x faster than welding without all the preparation, clean up and hours of frustration cutting angles and squaring up. And absolutely no weld distortion.
About KwikTech
Kwiktech is a revolutionary new product that takes all the hassle out of fabricating with hollow metal by connecting and bracing readily-available and cost-effective fencing materials for hassle-free DIY fabrication.
Now even the most inexperienced DIY’er can fabricate lightweight and ultra portable framework you can assemble and disassemble in minutes using only a tape measure and standard power tools.
Developed over a 9-year Research, Testing and Development period, Kwiktech was invented by a Boilermaker/Welder with over 20-years experience across the Construction, Mining, Oil and Gas Industries.
With a main goal of eliminating the need to cut angles and weld galvanised RHS, Kwiktech also takes all the guess work out of fabricating perfectly square framework thanks to the Easy DIY Fabrication Table.
Universal Connector
- 4 x Self-tapping Screw locations positioned for maximum unit strength
- Open mid-section to ensure Rail Connector sits flush against fixed surface
- 2 x Gussets formed each side for maximum strength and locking aid
- Raised lip with multiple breaks to aid with Locking Angle selection
- Step joining on both side gussets to evenly disperse stress placement
- 2 x 304 Nut inserts retain rotation forces during tightening
- Nut housings attached to a gusset to distribute forces to the unit’s perimeter
- All Cavities designed with through holes to eliminate possible muck build up
60° Rail Connector
- Morse Taper Male adaptor with 3 x extended locking features
- Shoulders designed to lock tight against Gussets for additional strength
- 2x External locking pins to allow full connection engagement
- 60° Symbol on top-side for easy identification
Ingenious Design
- 11 X Available Locking Angles consisting of 0°, 11.25°, 22.5°, 33.75°, 45° & 60° and
- Included Angles of 56.25°, 78.75°, 90° and 120°
- Fix your Connectors directly to your hollow metal with no preparation
- Zinc-plated Screws suffer minimal thread gailing due to stainless steel nut
- Specifically designed to be used with Standard Fencing Materials
- Made from the world’s most performance proven thermoplastic - Nylon 6
- UV Stabilised resin provides UV Protection against the Australian sun
- 30% Glass Reinforced for ultimate strength, stiffness and toughness
- Working temperatur range of -30°C to 90°C
Brace Connection
- Kwiktech is designed as a Brace Connection, not a joint, ensuring there is no weak point in our framework with NATA Accredited Tests confirming the hollow metal deforms before any signs of stress are detectable on the Connectors.
Rail Connector
- Morse Taper Male Adaptor with protrusions for precision fitting and maximum strength
- Morse Taper end left bare to allow for wear & tear during repeat use
- Designed to fit 38 x 25 RHS as close to 50 x 50 as technically possible
- Closest joining distance exactly 15 mm for easy fabrication calculations
- Socket Head Cap Screw Cavity for perfectly flat joint connection
- Ribbed sides to allow for multiple thickness of 38 x 25 from 1.2 mm to 1.6 mm
- Screw symbol for easy location of Fixing placement
- Two external tapered location pins for additional strength to all locking angles

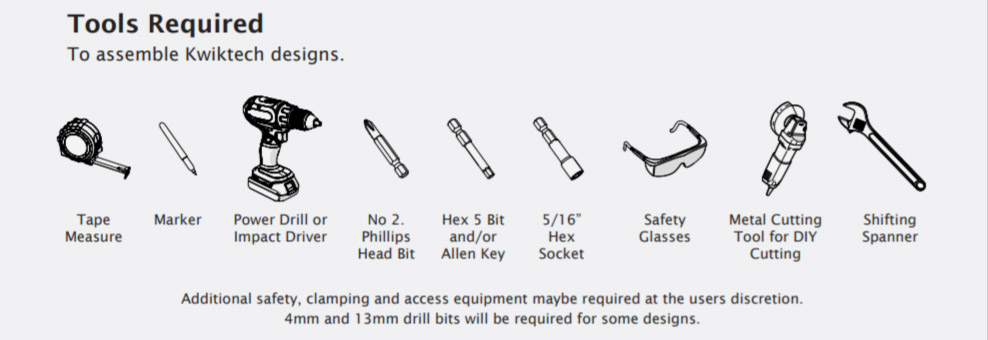

Required Tools
Clinical Precision
- Injection Moulded under strick AS/ISO90001 Quality Control
- 9 Years of Research Testing and Development
Compression Forces
- Kwiktech improves on the century-old construction principle of Compression Forces, similar to Timber Trusses used in House Construction, to ensure your hollow metal framework is as strong as the hollow metal itself.
